Weld neck flanges are critical components in industrial piping systems, recognized for their robustness and versatility. Designed to withstand high pressure and extreme temperatures, they are ideal for demanding applications in industries such as oil and gas, chemical processing, and power generation.
What Are Weld Neck Flanges?

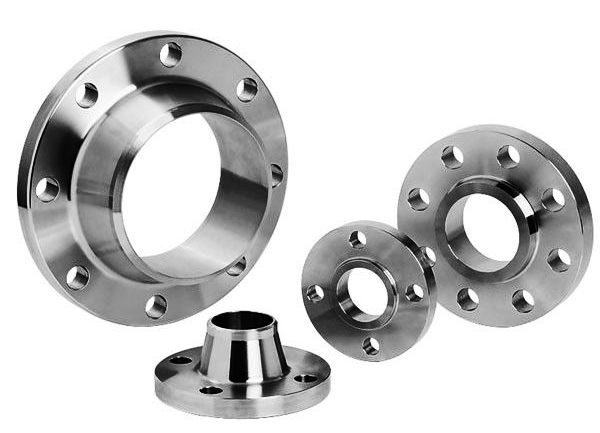

Weld neck flanges (WN flanges) are a type of flange with a long tapered hub that is welded to the end of a pipe. This design ensures seamless flow and reduces stress at the base of the flange, making it suitable for high-pressure and high-temperature environments. The welded connection provides exceptional structural integrity, minimizing the risk of leaks and mechanical failure.
Key Features of Weld Neck Flanges
- Tapered Neck Design: The tapered hub provides smooth stress transition from the flange to the pipe.
- Butt Weld Connection: Ensures a strong and leak-proof joint, making it suitable for critical systems.
- Durability: High resistance to mechanical stress, pressure, and temperature variations.
- Customizability: Available in a range of materials, pressure ratings, and dimensions.
Types of Weld Neck Flanges
1. Standard Weld Neck Flanges
These are commonly used in applications where high-pressure flow systems demand reliable connections.
2. Long Weld Neck Flanges
These flanges have an extended hub and are used in applications requiring additional reinforcement or thermal expansion compensation.
3. Reducing Weld Neck Flanges
Designed to connect pipes of different diameters, reducing flanges eliminate the need for a separate reducer.
4. Heavy-Wall Weld Neck Flanges
These flanges are used in applications with extremely high pressures, such as in refineries or offshore platforms.
Specifications of Weld Neck Flanges
Weld neck flanges are defined by several specifications to meet diverse industrial needs:
| Specification | Details |
|---|---|
| Standards | ASME B16.5, EN 1092, API 6A |
| Pressure Ratings | Ranges from Class 150 to Class 2500 |
| Materials | Carbon steel, stainless steel, alloy steel, duplex steel |
| Sizes | Available from ½” to 48” |
| Facing Types | Raised face (RF), flat face (FF), ring-type joint (RTJ) |
Applications of Weld Neck Flanges
1. Oil and Gas Industry
Weld neck flanges are used extensively in pipelines carrying crude oil, natural gas, and other hydrocarbons.
2. Chemical Processing
Their ability to withstand aggressive chemicals makes them suitable for chemical manufacturing plants.
3. Power Generation
From nuclear to thermal power plants, these flanges support the safe transport of steam, water, and other fluids.
4. Petrochemical Industry
Weld neck flanges ensure leak-proof connections in complex refinery piping systems.
5. Marine Applications
Used in shipbuilding for high-pressure hydraulic and fuel systems.
Advantages of Weld Neck Flanges
- High Strength: The welded connection ensures exceptional structural integrity.
- Leak-Proof: Butt weld reduces the chances of leaks, even under extreme pressure.
- Durable Design: Resistant to vibration, mechanical stress, and corrosion.
- Smooth Flow: Tapered neck reduces turbulence and pressure drop in the pipeline.
- Versatility: Suitable for high-pressure and high-temperature applications.
How to Select the Right Weld Neck Flange
1. Consider the Operating Environment
Choose materials and pressure ratings based on the temperature, pressure, and type of fluid in your system.
2. Verify Dimensions
Ensure the flange size and bore match the piping system’s specifications.
3. Assess Compatibility
Match the facing type (RF, FF, or RTJ) to the gasket and pipeline requirements.
4. Check Standards
Ensure compliance with industry standards such as ASME, EN, or API.
Installation Tips for Weld Neck Flanges
- Align Carefully: Ensure the flange aligns perfectly with the pipe to avoid stress concentration.
- Use the Right Welding Procedure: Follow recommended procedures for butt welding to achieve a secure joint.
- Inspect for Defects: Check for cracks, porosity, or other imperfections in the weld.
- Use High-Quality Gaskets and Bolts: Select components that match the flange’s material and pressure rating.
Weld Neck Flanges vs. Other Flange Types
| Feature | Weld Neck Flanges | Slip-On Flanges | Threaded Flanges |
|---|---|---|---|
| Strength | High | Moderate | Low |
| Leak Resistance | Excellent | Good | Moderate |
| Ease of Installation | Requires skilled welding | Simple | Easiest |
| Cost | Higher | Lower | Moderate |
Common Challenges and Solutions
1. Welding Defects
Solution: Ensure proper welding techniques and inspect thoroughly before commissioning.
2. Corrosion in Harsh Environments
Solution: Opt for corrosion-resistant materials like stainless steel or duplex steel.
3. Alignment Issues
Solution: Use precision tools to align the flange and pipe during installation.
FAQs
What makes weld neck flanges ideal for high-pressure systems?
Their tapered neck design and butt weld connection provide exceptional strength and leak resistance.
Can weld neck flanges be used for different pipe sizes?
Yes, reducing weld neck flanges are designed to connect pipes of varying diameters.
Which industries commonly use weld neck flanges?
They are widely used in oil and gas, chemical processing, power generation, and marine applications.
How do I ensure a proper seal with weld neck flanges?
Use high-quality gaskets and follow the recommended torque values during bolt tightening.
What materials are best for weld neck flanges in corrosive environments?
Stainless steel and duplex steel are ideal for resisting corrosion in harsh conditions.
Are weld neck flanges compliant with international standards?
Yes, they are manufactured according to standards like ASME B16.5, EN 1092, and API 6A.
Weld neck flanges are a cornerstone of reliable and efficient industrial piping systems. Their robust design, seamless flow capabilities, and resistance to extreme conditions make them indispensable in critical applications. By selecting the right weld neck flange and ensuring proper installation, industries can achieve long-term operational success and safety.
